K&N FIPK performance air intake systems increase power by eliminating the restrictive stock OE air cleaner and replacing it with a K&N complete performance intake system.
K&N FIPK air intakes for select Harley-Davidson Touring, Softail, Twin-Cam and Sportster motorcycle models increase power by eliminating the restrictive stock OE air cleaner and replacing it with a K&N high-flow air filter and cast aluminum intake tube. These intakes come with a die-cast aluminum throttle-body mounting plate and mounting hardware. K&N high-flow intake systems give your Harley an aggressive appearance while providing a significant increase in airflow resulting in more power.
- Guaranteed to increase horsepower
- Designed to improve throttle response and engine sound
- Cast aluminum high-performance intake tube
- Washable and reusable K&N High-Flow cotton air filter that provides outstanding performance and protection
- Integrated internal velocity stack
- Built-in breathers replace external OE breathers
- Lasts up to 100,000 miles before service is required (depending on driving conditions)
- Easy to install, usually in 90 minutes or less
Application Summary:
| Year |
Make/Model |
| 2008-2016 |
Harley-Davidson FLHR Road King |
| 2008-2013 |
Harley-Davidson FLHRC Road King Classic |
| 2008 |
Harley-Davidson FLHRSE4 Screamin Eagle Road King |
| 2008-2009 |
Harley-Davidson FLHT Electra Glide Standard |
| 2008-2013 |
Harley-Davidson FLHTC Electra Glide Classic |
| 2008-2013 |
Harley-Davidson FLHTCU Electra Glide Ultra Classic |
| 2010 |
Harley-Davidson FLHTCUSE5 CVO Ultra Classic Electra Glide |
| 2009-2013 |
Harley-Davidson FLHTCUTG Tri Glide Ultra Classic |
| 2011-2014 |
Harley-Davidson FLHTK Electra Glide Ultra Limited |
| 2015-2016 |
Harley-Davidson FLHTK Ultra Limited |
| 2015-2016 |
Harley-Davidson FLHTKL Ultra Limited Low |
| 2016 |
Harley-Davidson FLHX Street Glide |
| 2014-2016 |
Harley-Davidson FLHXS Street Glide Special |
| 2010-2011 |
Harley-Davidson FLHXXX Street Glide Trike |
| 2015-2016 |
Harley-Davidson FLRT Freewheeler |
| 2016-2017 |
Harley-Davidson FLS Softail Slim |
| 2016-2017 |
Harley-Davidson FLSS Softail Slim S |
| 2016-2017 |
Harley-Davidson FLSTC Heritage Softail Classic |
| 2016-2017 |
Harley-Davidson FLSTF Fat Boy |
| 2016-2017 |
Harley-Davidson FLSTFB Fat Boy Lo |
| 2016-2017 |
Harley-Davidson FLSTFBS Fat Boy S |
| 2008-2010 |
Harley-Davidson FLTR Road Glide |
| 2011-2013 |
Harley-Davidson FLTRU Road Glide Ultra |
| 2015-2016 |
Harley-Davidson FLTRX Road Glide |
| 2010-2013 |
Harley-Davidson FLTRX Road Glide Custom |
| 2015-2016 |
Harley-Davidson FLTRXS Road Glide Special |
| 2016-2017 |
Harley-Davidson FXSB Breakout |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
5.25 in (133 mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Outlet Length |
3 in (76 mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
3 in (76 mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
57-1134 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB EO Number |
D-269-59 |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
1 |
| Clamp Style |
Regular |
| Clamps Included |
1 |
| Country of Origin (Primary) |
CN |
| Coupler Color |
Not Applicable |
| Coupler Color/Finish |
Not Applicable |
| Couplers Included |
Not Required |
| Emission Code |
Legal US |

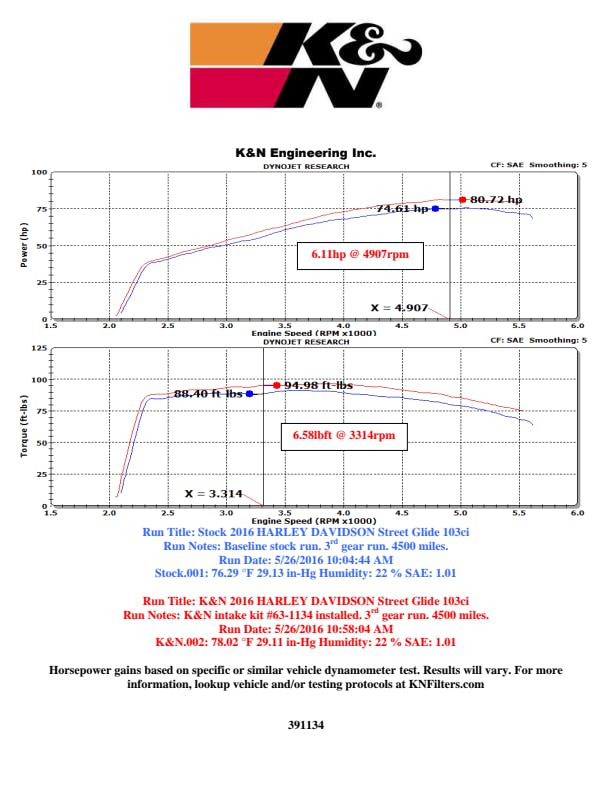

| Estimated Horse Power Gain |
6.11 HP @ 4907 RPM |
| Estimated Horsepower Gain |
6.11 HP @ 4907 RPM |
| Estimated Torque Gain |
7 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
6 HP |
| Intake Pipe Color |
Black |
| Intake Pipe Color / Finish |
Black |
| Intake Pipe Inlet Length |
3.000 in. (76mm) |
| Intake Pipe Inlet Shape |
Round |
| Intake Pipe Inlet Width |
3.000 in. (76mm) |
| Intake Pipe Material |
Die-Cast Aluminum |
| Intake Pipe Outlet Length |
4.000 in. (102mm) |
| Intake Pipe Outlet Shape |
Round |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
4.200 lbs. (1.9 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
No |
| Mass Air Flow Sensor Included |
No |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes |
| Package Material |
Corrugated |
| Package Type |
Box |
| Product Style |
Motorcycle Intake System |
| Replacement Filter |
RE-5286 |
| RPM |
4907 |
| SDR Required Flag |
N |
| Standard Pack |
4 |
| Street Legal |
Yes |
| Street Legal In All US States |
Legal for use in all 50 states. |
| TUV Approved (Europe) |
No |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
4.2 lb (1.9 kg) |
| GTIN |
10024844368475 |
