K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow.
The K&N 57-9006 FIPK air intake system replaces your vehicle's restrictive factory air filter and air intake housing. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 57-9006 air intake comes with a chrome topped K&N high-flow air filter that installs into the previous air box space. Air is directed through an aerodynamically engineered intake tube into the engine's throttle body for a guaranteed power gain. The tube accommodates the factory mass air sensor and an engine vent line. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 60 minutes or less using the existing factory mounting points. The tools needed are a screwdriver, socket set and several wrenches.
- Guaranteed to increase horsepower
- Designed to improve throttle response and engine sound
- Lasts up to 100,000 miles before service is required (depending on driving conditions)
- Washable and reusable lifetime air filter
- Free-flowing high density polyethylene tube
- Easy to install, usually in 60 minutes or less
Application Summary:
| Year |
Make/Model |
| 1988-1995 |
Toyota 4Runner |
| 1988-1995 |
Toyota Pickup |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
4.000 in. (102mm) |
| Air Filter Large End Diameter |
7.500 in. (191mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Length |
6.000 in. (152mm) |
| Air Filter Oulet Width |
6.000 in. (152mm) |
| Air Filter Outlet Length |
6.000 in. (152mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
6.000 in. (152mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
57-9006 |
| ASIN |
B000BR1QE6 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB EO Number |
D-269-8 |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
3 |
| Clamp Style |
Mini |
| Clamps Included |
3 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Not Applicable |
| Coupler Color/Finish |
Not Applicable |
| Couplers Included |
None, No |
| Emission Code |
Legal US |

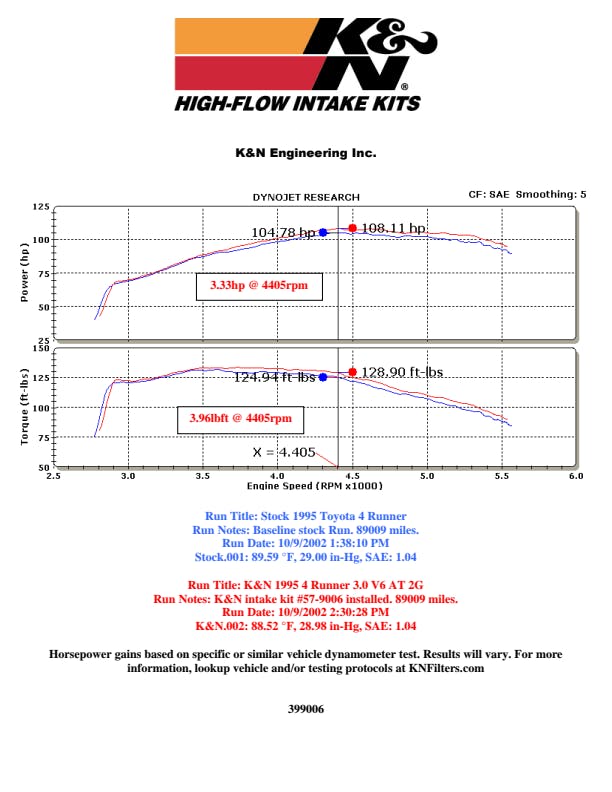

| Estimated Horse Power Gain |
3.33 HP @ 4405 RPM |
| Estimated Horsepower Gain |
3.33 HP @ 4405 RPM |
| Estimated Torque Gain |
4 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
3 HP |
| Intake Pipe Color |
Black |
| Intake Pipe Color / Finish |
Black |
| Intake Pipe Material |
High-Density Cross-Linked Polyethylene |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
4.600 lbs. (2.1 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
Yes |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
9.25 in (235 mm), 9.250 in. (235mm) |
| Product Box Length |
9.13 in (232 mm), 9.130 in. (232mm) |
| Product Box Width |
9.13 in (232 mm), 9.130 in. (232 mm) |
| Product Style |
57 Series FIPK |
| Replacement Filter |
RU-1009, RF-1009 |
| RPM |
4405 |
| SDR Required Flag |
N |
| Standard Pack |
1 |
| Street Legal |
Yes |
| Street Legal In All US States |
Yes, Legal for use in all 50 states. |
| TUV Approved (Europe) |
No, No |
| Type |
Gen I |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
4.6 lb (2.1 kg) |
| GTIN |
00024844021885 |
