K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow. K&N air intakes come with K&N's famous No-Hassle Lifetime Limited warranty.
The K&N AirCharger 63-9034 air intake system replaces your vehicle's restrictive factory air filter and air intake housing. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your vehicle's engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-9034 air intake comes with a chrome topped K&N high-flow air filter and a heat shield that installs into the previous air box space. This allows cooler, denser air to be directed through a custom molded intake tube into the engine's throttle body for a guaranteed power gain. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install requiring only a screwdriver, pliers, socket set and several wrenches.
- Guaranteed horsepower gain
- Designed to improve throttle response and engine sound
- Free-flowing high density polyethylene tube
- Replaces entire factory air intake system
- K&N No-Hassle Lifetime Limited Warranty
- Lasts up to 100,000 miles before service is required (depending on driving conditions)

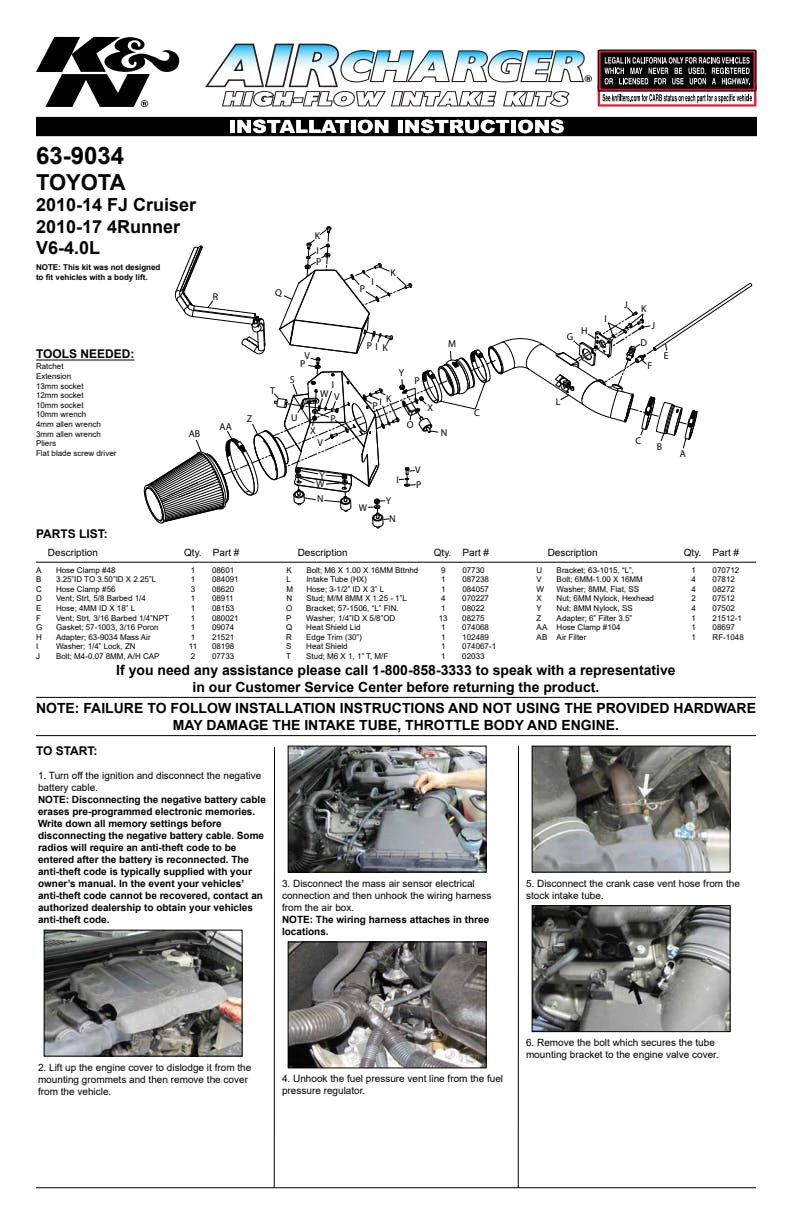

- Easy to install, usually in 90 minutes or less
Application Summary:
| Year |
Make/Model |
| 2010-2024 |
Toyota 4Runner |
| 2010-2014 |
Toyota FJ Cruiser |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
8.000 in. (203mm) |
| Air Filter Large End Diameter |
7.500 in. (191mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Length |
6.000 in. (152mm) |
| Air Filter Oulet Width |
6.000 in. (152mm) |
| Air Filter Outlet Length |
6.000 in. (152mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
6.000 in. (152mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
63-9034 |
| Alternate Replacement Filter |
RF-1048/RU-1048XD |
| ASIN |
B0049MAYU6 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| California Restricted |
Not legal for sale or use in California |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
5 |
| Clamp Style |
Regular |
| Clamps Included |
5 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Black |
| Coupler Color/Finish |
Black |
| Couplers Included |
2 |
| Emission Code |
Not in CA |

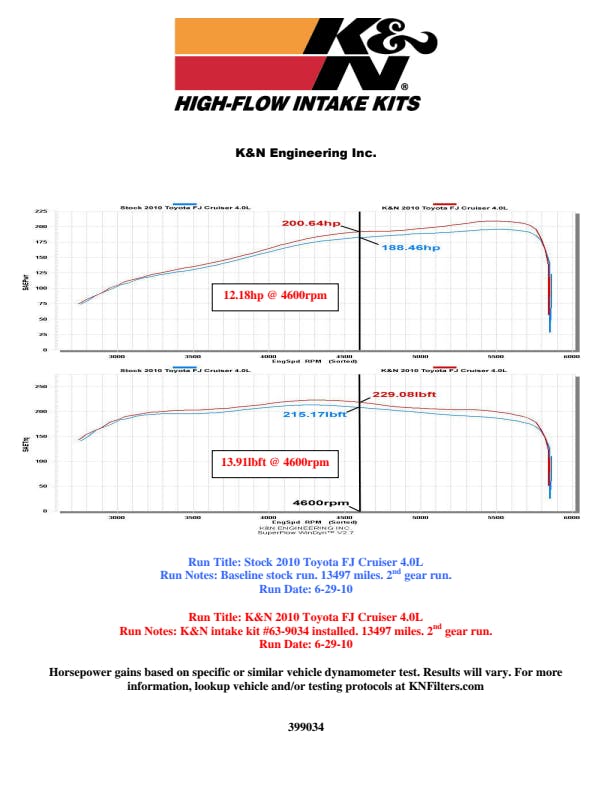

| Estimated Horse Power Gain |
12.18 HP @ 4600 RPM |
| Estimated Horsepower Gain |
12.18 HP @ 4600 RPM |
| Estimated Torque Gain |
14 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
12 HP |
| Intake Pipe Color |
Black |
| Intake Pipe Color / Finish |
Black |
| Intake Pipe Material |
High-Density Cross-Linked Polyethylene |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
14.100 lbs. (6.4 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
Yes |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
12.5 in (318 mm), 12.500 in. (318mm) |
| Product Box Length |
22.25 in (565 mm), 22.250 in. (565mm) |
| Product Box Width |
14.25 in (362 mm), 14.250 in. (362 mm) |
| Product Style |
63 Series Aircharger Kits |
| Replacement Filter |
RU-1048, RF-1048 |
| RPM |
4600 |
| SDR Required Flag |
N |
| Standard Pack |
1 |
| Street Legal |
No |
| Street Legal In All US States |
No, Not legal for sale or use in California on any pollution controlled motor vehicle. |
| TUV Approved (Europe) |
No, No |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
14.1 lb (6.4 kg) |
| GTIN |
00024844277053 |
