K&N's easy-to-install Typhoon cold air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tubes come in a silver powder coat finish.

---

The K&N 69-6010TS Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda 3 and Mazda 5 Van models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in relatively cooler air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of denser air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-6010TS cold-air intake consists of a K&N high-flow air filter that mounts behind the driver side wheel well directing cooler outside air through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean, colder air into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less.

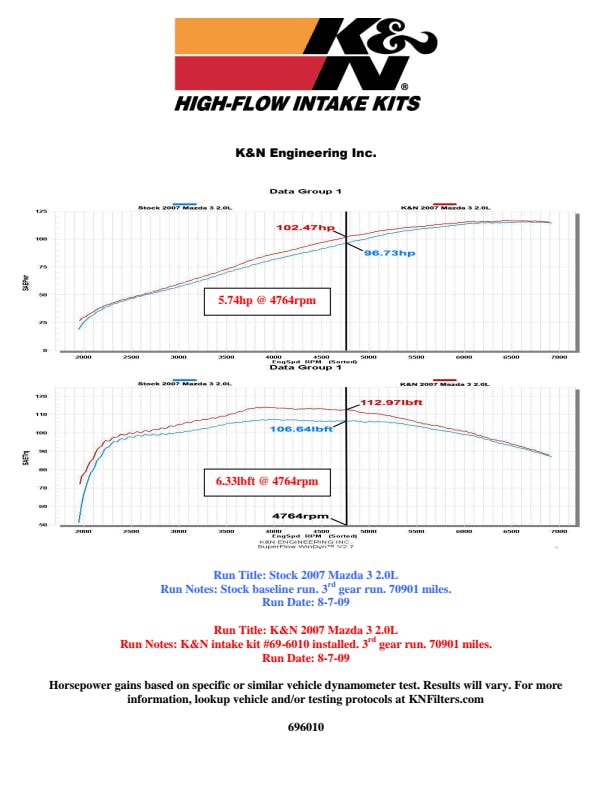

• Guaranteed to increase horsepower
• Designed to improve throttle response and engine sound
• Free-flowing aluminum tubes
• Easy to install, usually in 90 minutes or less
• Filter lasts up to 100,000 miles before service is required
• Replaces entire factory air intake system
• Washable and reusable lifetime air filter
• K&N Million Mile Limited Warranty

---

Application Summary:

Year	Make/Model
2004-2009	Mazda 3
2006-2008	Mazda 5
