K&N's easy-to-install Typhoon cold-air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum tubes come in a silver powder coat finish.
The K&N 69-7070TP Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Nissan 300Z 3.5 Liter V6 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in relatively cooler air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of denser air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-7070TP cold-air intake consists of a roto-molded plastic intake scoop that mounts behind the 350Z's front fascia directing cooler outside air through free-flowing aluminum tubing into the K&N carbon fiber topped air box. Inside the air box is a black rubber topped K&N high-flow air filter connecting to a mandrel-bent, 3" aluminum induction tube that delivers high volumes of clean, colder air into the engine's throttle body for a guaranteed power gain. The intake tubes have an attractive silver powder-coat finish that's made to last. The cold-air intake system accommodates the factory mass air sensor and crank case vent hose. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. The tools needed for installation are a screwdriver, pliers, ratchet set and several wrenches. ach vehicle and air intake.
- Designed to improve throttle response and engine sound
- Washable and reusable lifetime air filter
- Lasts up to 100,000 miles before service is required (depending on driving conditions)
- Replaces entire factory air intake system
- K&N Million Mile Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2003-2006 |
Nissan 350Z |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
5.563 in. (141mm) |
| Air Filter Large End Diameter |
6.000 in. (152mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Length |
3.000 in. (76mm) |
| Air Filter Oulet Width |
3.000 in. (76mm) |
| Air Filter Outlet Length |
3.000 in. (76mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
3.000 in. (76mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
69-7070TP |
| ASIN |
B000AP6RGG |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB EO Number |
D-269-32 |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
3 |
| Clamp Style |
Regular |
| Clamps Included |
3 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Black |
| Coupler Color/Finish |
Black |
| Couplers Included |
1 |
| Emission Code |
Legal US |

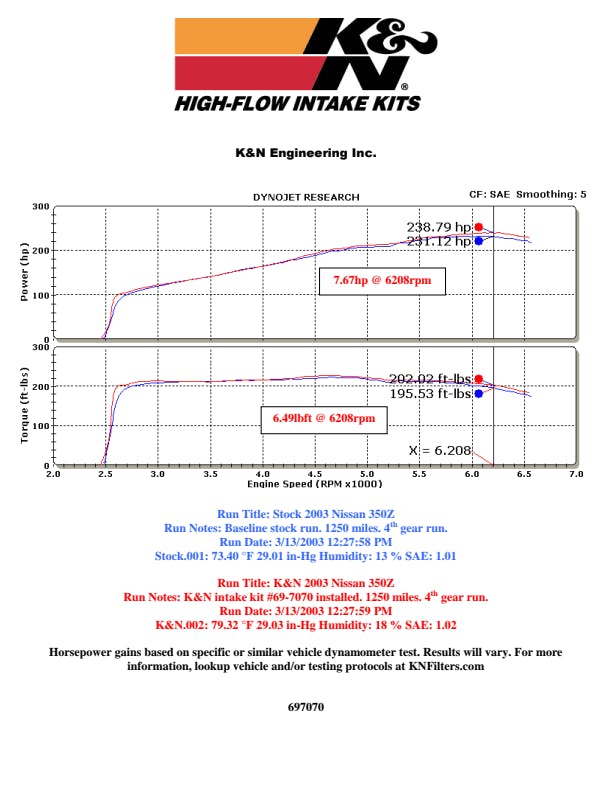

| Estimated Horse Power Gain |
7.67 HP @ 6208 RPM |
| Estimated Horsepower Gain |
7.67 HP @ 6208 RPM |
| Estimated Torque Gain |
7 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Flange Angle |
0 degrees |
| Flange Offset |
0 in (0 mm) |
| Flange Type |
Centered |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
8 HP |
| Intake Pipe Color |
Polished |
| Intake Pipe Color / Finish |
Polished, Blue, Polished |
| Intake Pipe Inlet Length |
19.000 in. (483mm) |
| Intake Pipe Inlet Shape |
Round |
| Intake Pipe Inlet Width |
3.000 in. (76mm) |
| Intake Pipe Material |
Aluminum |
| Intake Pipe Outlet Length |
12.000 in. (305mm) |
| Intake Pipe Outlet Shape |
Round |
| Intake Pipe Outlet Width |
2.500 in. (64mm) |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
12.300 lbs. (5.6 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
Yes |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
14.5 in (368 mm) |
| Product Box Length |
24.1 in (612 mm) |
| Product Box Width |
15.5 in (394 mm) |
| Product Style |
69 Series Typhoon Kits |
| Replacement Filter |
RU-4990 |
| RPM |
6208 |
| SDR Required Flag |
N |
| Standard Pack |
1 |
| Street Legal |
Yes |
| Street Legal In All US States |
Yes, Legal for use in all 50 states. |
| System Type |
Complete Cold-Air Intake System |
| TUV Approved (Europe) |
No, No |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
12.3 lb (5.6 kg) |
| GTIN |
00024844102201 |
