Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
The Mishimoto performance aluminum radiator for the Nissan 240SX is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required, making this the ideal upgrade to the stock Nissan 240SX radiator.Check out the Mishimoto lightweight aluminum Nissan 240sx fan shroud for even more cooling efficiency.
- Full aluminum construction featuring high-quality, durable TIG-welding
- Two-row, 1.97-in thick brazed aluminum core provides ideal fluid temperatures on and off the track

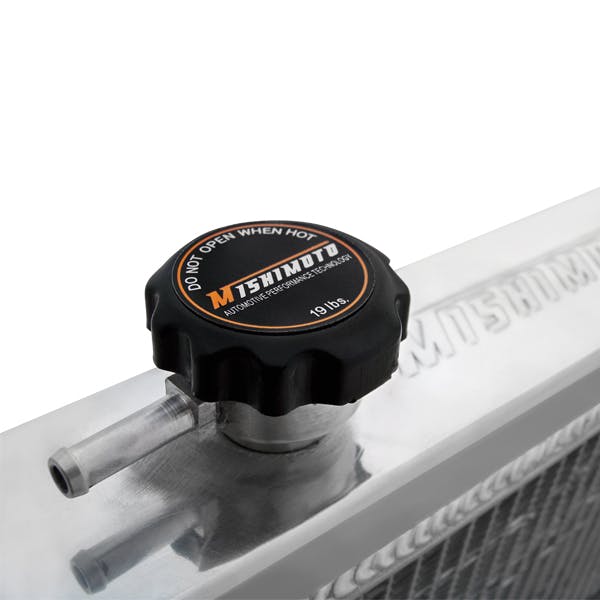

- Includes 1.3 Bar High-Pressure Radiator Cap, which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Application Summary:
| Year |
Make/Model |
| 1989-1994 |
Nissan 240SX |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Core Height |
13.13 |
| Core Length |
25.12 |
| Core Material |
Aluminum |
| Core Row Quantity |
2 |
| Core Thickness |
1.97 |
| Country of Origin (Primary) |
CN |
| Dimensions |
26.3in x 19.6in x 2.47in |
| Down Flow Or Cross Flow Type |
Down Flow |
| Drain Plug Included |
Yes |
| Fluid Capacity |
2 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Inlet Diameter |
1.25 |
| Inlet Location |
Top Right |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
1.25 |
| Outlet Location |
Bottom Right |
| Overall Height |
19.6 |
| Overall Length |
26.3 |
| Overall Width |
2.4 |
| Radiator Cap Included |
Yes |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1989-1994 Nissan 240SX W/ KA24 Engine |
| SellingPoint02 |
Full aluminum construction featuring high-quality, durable TIG-welding |
| SellingPoint03 |
Two-row, 1.97-in thick brazed aluminum core provides ideal fluid temperatures on and off the track |
| SellingPoint04 |
Includes 1.3 Bar High-Pressure Radiator Cap, which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint05 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint06 |
Mishimoto Lifetime Warranty |
| SellingPoint07 |
N/A |
| SellingPoint08 |
N/A |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 1989-1994 Nissan 240SX W/ KA24 Engine |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction featuring high-quality, durable TIG-welding |
| SellingPoint3 |
Two-row, 1.97-in thick brazed aluminum core provides ideal fluid temperatures on and off the track |
| SellingPoint4 |
Includes 1.3 Bar High-Pressure Radiator Cap, which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint5 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint6 |
Mishimoto Lifetime Warranty |
| SellingPoint7 |
N/A |
| SellingPoint8 |
N/A |
| SellingPoint9 |
N/A |
| TechSpec Applications |
1991-1992 Nissan 240sx LE--1989-1994 Nissan 240sx SE |
| TechSpec Chassis Codes |
S13 |
| TechSpec Core Height (in) |
13.13 |
| TechSpec Core Length (in) |
25.12 |
| TechSpec Core Thickness (in) |
1.97 |
| TechSpec DPI |
1276/46 |
| TechSpec Drain Plug Thread Size |
M16 x 0.06 |
| TechSpec Engine Codes |
KA24EKA24DE |
| TechSpec Fluid Capacity (gal) |
2 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.25 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto transmission cooler (P/N: MMTC-U). |
| TechSpec Outlet (in) |
1.25 |
| TechSpec Overall Height (in) |
19.6 |
| TechSpec Overall Length (in) |
26.3 |
| TechSpec Overall Width (in) |
2.4 |
| TechSpec Overall Width (ins) |
2.4 |
| TechSpec Rows |
2 |
| Transmission Oil Cooler Fitting Type |
N/A |
| Transmission Oil Cooler Included |
No |
| GTIN |
00748354797343 |
